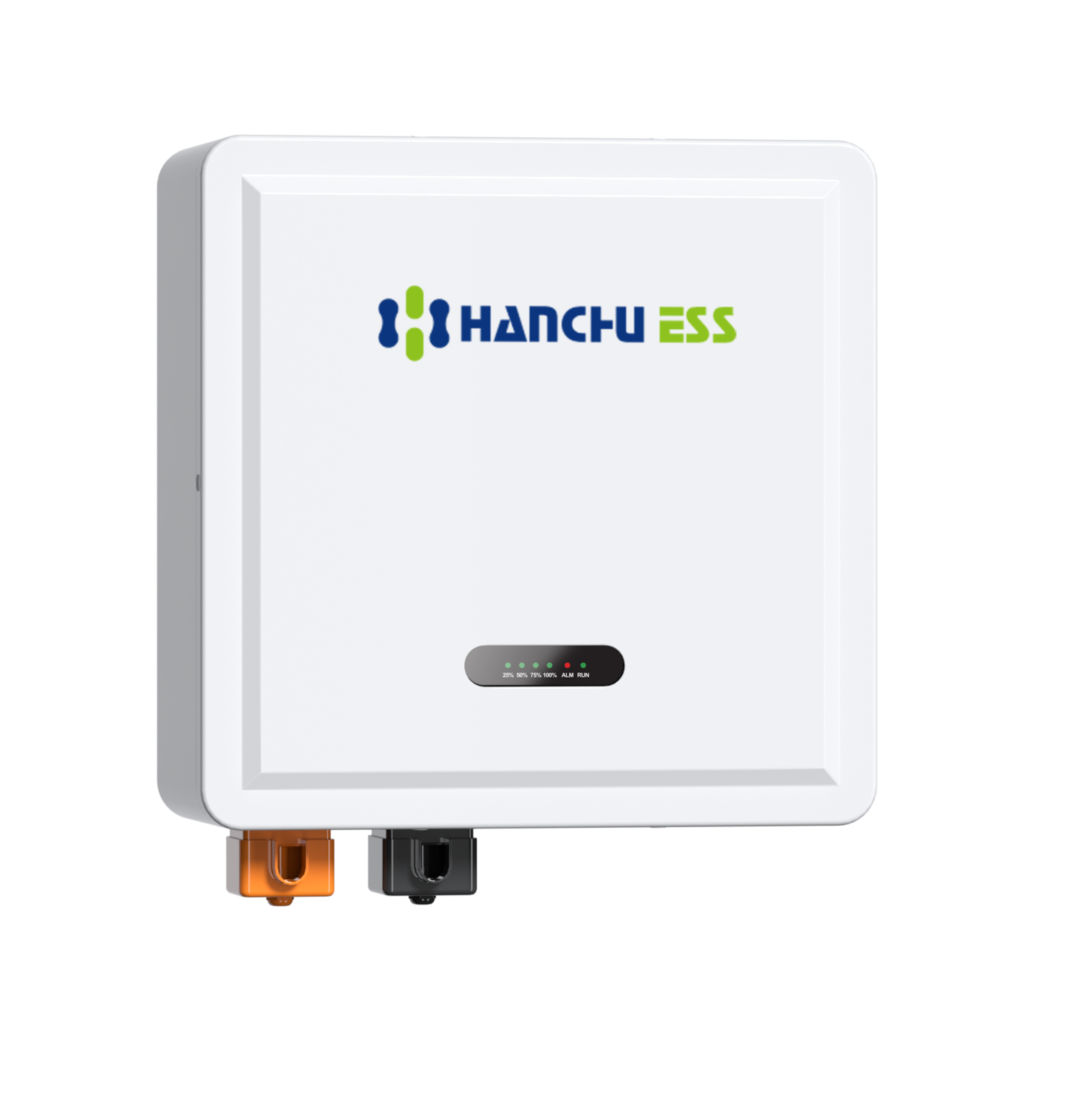

Hanchu ESS Energy 2.56KWh Lithium Battery 24/25V - HOME-ESS-LV-2.56K
RRPR8 500,00
HOME-ESS-LV-2.56K HANCHU 2.56KWh
User-Friendly
• Concealed wall bracket and easy to install
• Ultra-thin body for easy handling
• Intelligent automatically addressing
Excellent Design
• Up to 16 units in parallel
• Real-time display of power
• Support CAN+RS485 communication
Higher Performance
• Rapid charge and discharge ability (100A per unit)
• Highest 95% DOD, much more usable energy
Super Safe and Reliable
• Top quality LFP battery
• Multiple over-discharge protection
• Smart BMS protection unit
Model |
HOME-ESS-LV-2.56K |
| Nominal Energy | 2.56kWh |
| Capacity |
2.56kWh |
| Nominal Voltage | 25.6V |
| Operating Voltage Range | 21.6-28.8V |
| Cell Type | LFP(LiFePO4) |
| Dimension(W*D*H) | 340*160*340mm |
| Weight | 24.5Kg |
| Charging Temperature | From 0~50°C |
| Discharging Temperature | From -20~55°C |
| Depth of Discharge | 95% DOD |
| Nominal Charging Current | 100A |
| Nominal Discharging Current | 100A |
| Enclosure Protection Rating | IP54 |
| Cooling Type | Natural convection |
| Humidity | ≤95% |
| Communication Port | CAN/RS485 |
| Battery Safety | IEC 62619/CE |
| Transportion Certification | UN38.3 |
Product Code: VS-LI25.6-100-2.56HE
Brand: HANCHU ENERGY
Product Condition: New
weight: 24.5kg
