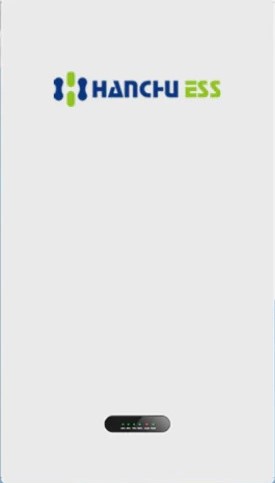

Hanchu ESS Energy 5.12KWh Lithium Battery 48/51.2V - HOME-ESS-LV-5.12K
HOME-ESS-LV-5.12K HANCHU 5.12KWh
Easier Installation
- Ultra-thin body for easy handling
- Intelligent automatic addressing.
Smart Management
- 24/7 real-time monitoring, remote diagnosis, and upgrading.
- Fast configuration via APP/Platform
Higher Performance
- Rapid charge and discharge ability (100A per unit).
- Highest 95% DOD, much more usable energy.
- Maximum 250A for the main circuit during parallel, no need to install a combiner box.
Super Safe and Reliable
- Top-quality LFP battery.
- Fire protection for ever-packed Smart BMS and online EMS.
Model |
HOME-ESS-LV-5.12K |
| Nominal Energy | 5.12kWh |
| Capacity |
5.12kWh |
| Nominal Voltage | 51.2V |
| Operating Voltage Range | 43.2-57.6V |
| Cell Type | LFP(LiFePO4) |
| Dimension(W*D*H) | 338*138.5*600mm |
| Weight | 46.5Kg |
| Charging Temperature | From 0~50°C |
| Discharging Temperature | From -20~55°C |
| Depth of Discharge | 95% DOD |
| Nominal Charging Current | 100A |
| Nominal Discharging Current | 100A |
| Enclosure Protection Rating | IP54 |
| Cooling Type | Natural convection |
| Humidity | ≤95% |
| Communication Port | CAN/RS485/WIFI/Bluetooth |
| Battery Safety | IEC 62619/CE |
| Transportation Certification | UN38.3 |
Product Code: VS-LI51-5,1-HE
Brand: HANCHU ENERGY
Product Condition: New
weight: 46.5kg
