605-620W RENE SOLA Tier1 Mono Crystalline Solar Panel -

RENE SOLA 605-630W Solar Panel - RS6-605~630I-E1 605/610/615/620/625/630 1500V
BC -Type /Positive power tolerance of 0~+3%/Max module efficiency 24.39%
Complete System and IEC Product Certification
IEC 61215(2016),IEC 61730(2016) ISO9001:
2015:Quality Management System ISO14001:
2015:Environment Management System
ISO45001:2018:Occupational Health
and Safety Management System
Suitable for ground power plants and distributed projects
Advanced module technology delivers superior module efficiency
Excellent power generation performance
High module quality ensures long-term reliability

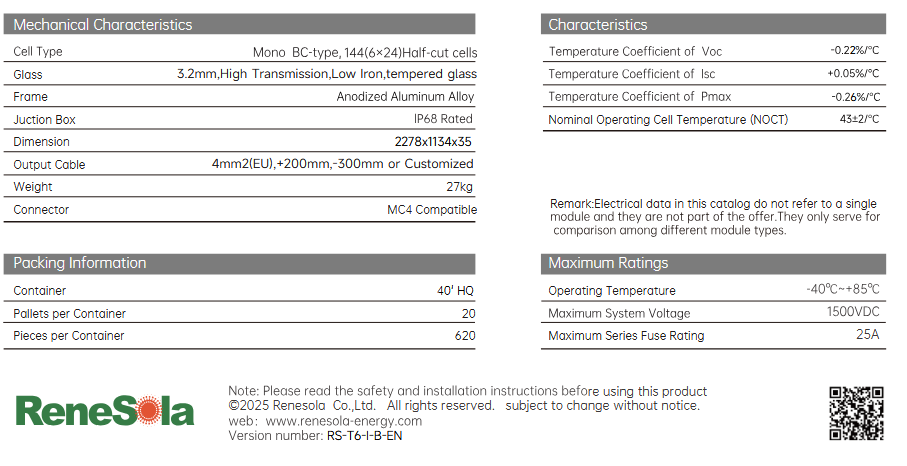

620W Mono Crystalline Solar Panel - RENE SOLA

Nominal Maximun Power (Pmax) - 620W

Optimum Operating Voltage (Vmp) - 45.08V

Optimum Operating Current (Imp) - 13.76A

Open Circuit Voltage (Voc) - 54.39V

Short Circuit Current (Isc) - 14.52A

Maximum System Voltage - 1500V

Maximum Protection Current - 25A

Cell Type - Mono BC-type, 144(6x24)Half-cut cells

Number of Cells - 144 (6x24)

Weight - 27kg

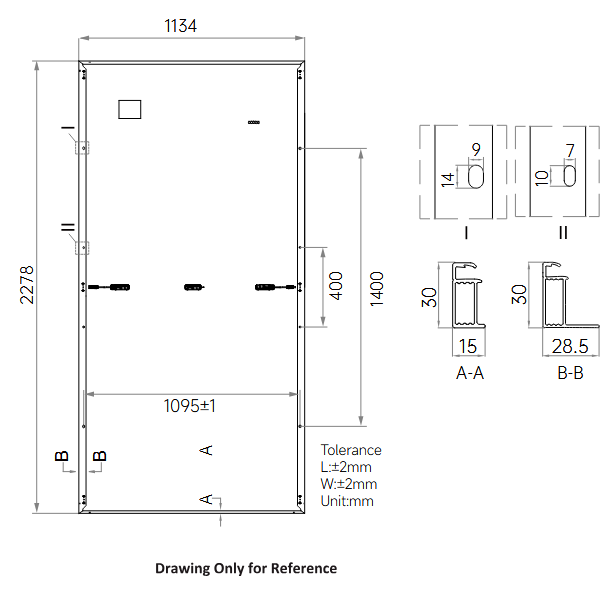

Dimensions - 2278 x 1134 x 30mm

Glass - 3.2mm Tempered Coated Glass, Low Iron, High Transmission

Frame - Anodized Aluminium Alloy

Junction Box - Protection Degree IP68

Cable Thickness - 4.0mm

Cable Lenght - 300mm

Operating Temperature - -40℃~+85℃

Note： Information subject to product brochure, information may change or vary over time
