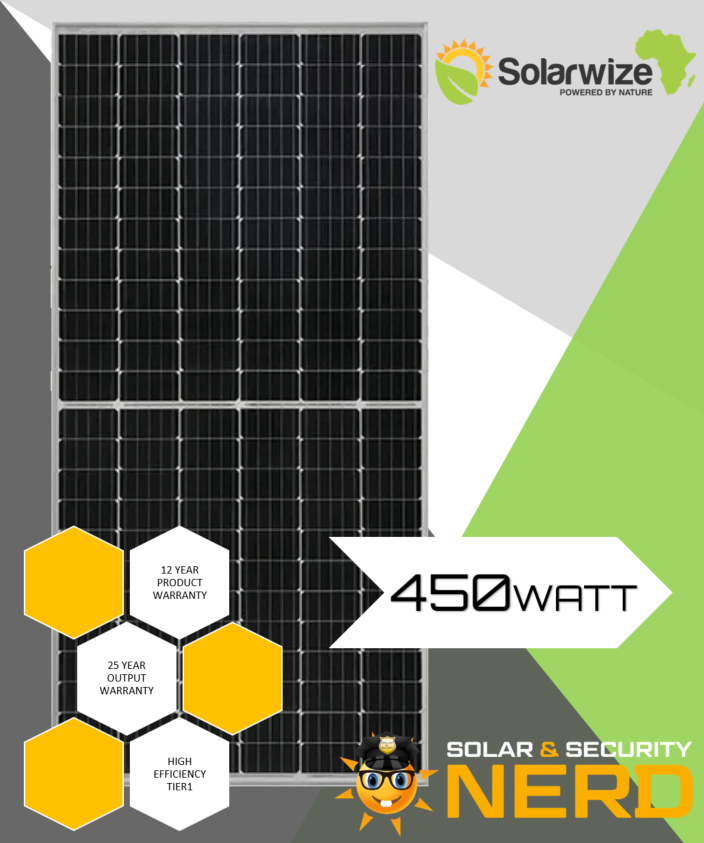

450W SOLARWIZE Mono Crystalline Solar Panel -

SOLARWIZE 450W Solar Panel - Bi-Facial YH450W-36M
 Based on 166mm wafer, more uniform current collection capability, Half-Cell design reduces internal current and internal loss and improves output of module power.

450W Mono Crystalline Solar Panel - Solarwize Bi-Facial

Nominal Maximun Power (Pmax) - 450W

Optimum Operating Voltage (Vmp) - 41.26V

Optimum Operating Current (Imp) - 10.91A

Open Circuit Voltage (Voc) - 49.85V

Short Circuit Current (Isc) - 12.24A

Maximum System Voltage - 1500V

Maximum Protection Current - 20A

Cell Type - Half-Cell 166mm

Number of Cells - 144 (6x12x2)

Weight - 23.5kg

Dimensions - 2094x 1038 x 35mm

Glass - 2mm Tempered Coated Glass, low iron

Encapsulating Material - EVA

Frame - Anodized Aluminium

Junction Box - Protection Degree IP68

Cable Thickness - 4.0mm

Cable Lenght - 300mm

Operating Temperature - -40℃~+85℃

Note： Electrical  parameters  are  only  used  for  comparison  between
 different types of modules.Due to product innovation , SOLARWIZE
 reserves the right to adjust the information in this datasheet at any time
 without prior notice. The technical data in this datasheet may be slightly
 deviated. Customer shall obtain the latest version of the datasheet when
 signing  contract  and  making it an integral part of the binding contract
 signed by both parties.
